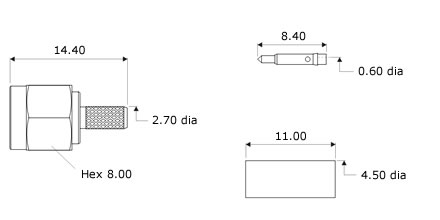

| Strip Dimensions | A=5.5mm, B=1.0mm, C=3.0mm |
| 1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid. |
| 2)
Solder the pin onto the centre core and slide the pin into the body,
ensuring that the cable braid is on the outside of the connector mandril
and that the pin is located in accordance with MIL-C-39012 interface
dimensional requirements. |
| 3) Slide the ferrule forward and crimp. |
| Crimp Hex. Sizes | 3.83mm Hex., Solder centre core |
