Part Number: MA15-50-A01

Details & Specifications

Description SMA Terminator Body Brass, Gold Plated Coupling Nut Brass, Gold Plated Dielectric PTFE Pin Phosphor Bronze, Gold Plated Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 18 GHz Mating Torque 0.34 to 0.57 NM (3 - 5 inch pounds) Temperature Range -55 +125 degrees C Working Voltage 500 Volts RMS Maximum (0.5W) VSWR / Return Loss 0-10 GHz - 1.1 Max. / 27 dB 10-18 GHz - 1.2 Max. / 21 dB

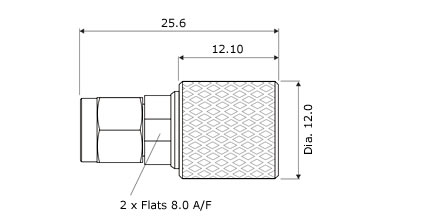

Technical Illustration
