Part Number: MA15-0519-C06
MA15-0519-C06
Details & Specifications

DescriptionSMA Crimp Plug
To Fit Cable TypesLBC400, LBC400 ExtraFlex
Fixing MethodCrimp
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degrees C
Working Voltage375 Volts RMS Maximum

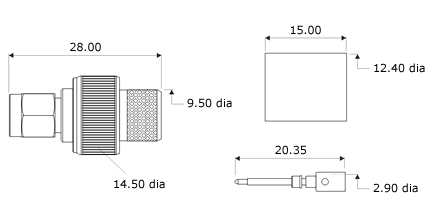

Technical Illustration
MA15-0519-C06
Assembly Instructions
Strip DimensionsA=7.5mm, B=0mm, C=3.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin captivates.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes10.90mm Hex., Solder centre core
