Part Number: MA15-0405-R01
MA15-0405-R01
Details & Specifications

DescriptionSMA Direct Solder Plug
To Fit Cable Types085 Semi-rigid, RG405 Conformable, RG405 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold plated
Coupling NutBrass, Gold plated
DielectricPTFE
InsulatorPTFE
PinBrass, Gold plated
Cable Retention27N
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency18 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degress C
Working Voltage335 Volts RMS Maximum

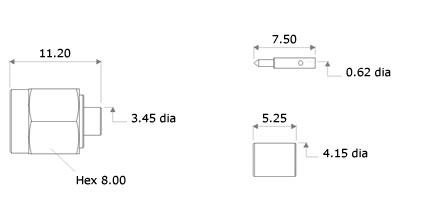

Technical Illustration
MA15-0405-R01
Assembly Instructions
Strip DimensionsA=0mm, B=3mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.
2) Fit the insulator into the front of the body using an SMA Insertion Tool.
3) Solder the pin onto the centre core and slide the pin into the body, ensuring that the pin is located in accordance with MIL-C-39012 interface dimensional requirements. Solder the outer shield of the cable to the connector mandril.
