Part Number: MA15-0400-C06

Details & Specifications

Description SMA Crimp Plug, Nickel Plated To Fit Cable Types RG142, RG223, RG400 Fixing Method Crimp Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric PTFE Ferrule Brass, Nickel Plated Pin Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 12.4 GHz Mating Torque 0.34 to 0.57 NM (3 - 5 inch pounds) Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum Additional Information For Gold Plated version see alternative part number MA15-0400-C01.

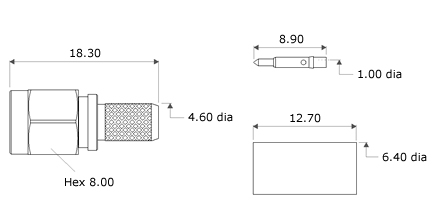

Technical Illustration

Assembly Instructions

Strip Dimensions A=7mm, B=2.5mm, C=2.5mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Solder the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is located in accordance with MIL-C-39012 interface dimensional requirements. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., Solder centre core
