Part Number: MA15-0174-C01
MA15-0174-C01
Details & Specifications

DescriptionSMA Crimp Plug, Gold Plated
To Fit Cable TypesLBC100, LBC100 LSZH, LMR100, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Gold Plated
Coupling NutBrass, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Mating Torque0.34 to 0.57 NM (3 - 5 inch pounds)
Temperature Range-65 to +165 degress C
Working Voltage335 Volts RMS Maximum
Additional InformationSee alternative part for Nickel Plated version

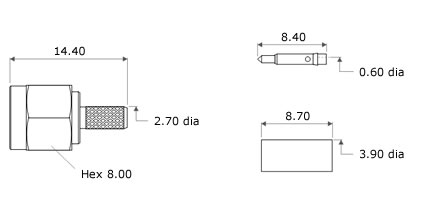

Technical Illustration
MA15-0174-C01
Assembly Instructions
Strip DimensionsA=5.5mm, B=1.0mm, C=3.0mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is located in accordance with MIL-C-39012 interface dimensional requirements.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.25mm Hex., Solder centre core
