Part Number: MA10-X150-N01
MA10-X150-N01
Details & Specifications

DescriptionSMA Vertical PCB Jack
Fixing MethodPCB
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

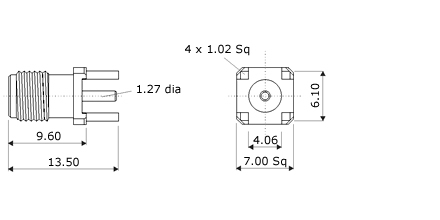

Technical Illustration
MA10-X150-N01
PCB Layout Information
PCB Layout DimensionsA=5.08mm, B=5.08mm, Holes; 4x1.50mm, 1x1.40mm
