Part Number: MA10-TN10

Details & Specifications

Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 9 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

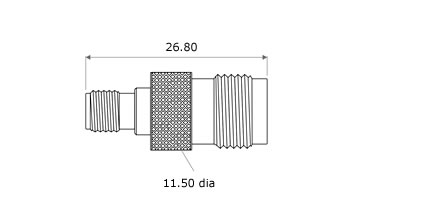

Technical Illustration
