Part Number: MA10-NT15
MA10-NT15
Details & Specifications

BodyBrass, Nickel Plated
ContactPhosphor Bronze, Gold Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinPhosphor Bronze, Gold Plated
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency11 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationReturn Loss [VSWR]

DC to 8GHz - >20dB [1.22]
8GHz to 11GHz - 15dB [1.43]

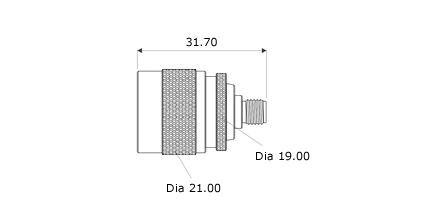

Technical Illustration
MA10-NT15
