Part Number: MA10-0405-R01
MA10-0405-R01
Details & Specifications

DescriptionSMA Direct Solder Jack
To Fit Cable Types085 Semi-rigid, RG405 Conformable, RG405 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold plated
ContactBeryllium Copper, Gold plated
DielectricPTFE
Cable Retention27N
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency18 GHz
Temperature Range-65 to +165 degress C
Working Voltage335 Volts RMS Maximum

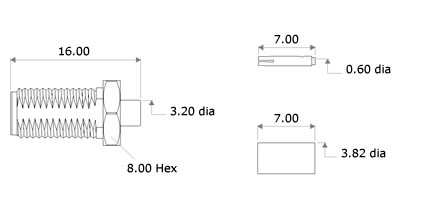

Technical Illustration
MA10-0405-R01
Assembly Instructions
Strip DimensionsA=0mm, B=2.5mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.
2) Solder the contact onto the centre core, then screw the body fully into an SMA Jack Gauge. Slide the contact into the back of the body until it meets the gauge and solder the cable to the mandril.
3) Fit the insulator into the front of the body using an SMA Insertion Tool.
