Part Number: MA10-0402-R01

Details & Specifications

Description SMA Direct Solder Jack To Fit Cable Types 141 Semi-rigid, RG402 Conformable, RG402 Conformable FEP Fixing Method Solder Body Brass, Gold Plated Contact Beryllium Copper, Gold Plated Dielectric PTFE Cable Retention 27N Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 18 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

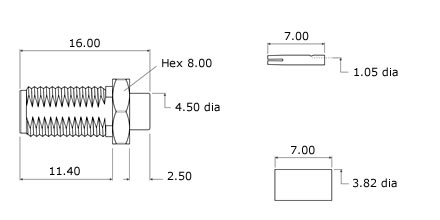

Technical Illustration

Assembly Instructions

Strip Dimensions A=0mm, B=2.5mm 1) Strip the cable to the dimensions as shown, taking care not to nick the centre core. 2) Solder the contact onto the centre core, then screw the body fully into an SMA Jack Gauge. Slide the contact into the back of the body until it meets the gauge and solder the cable to the mandril. 3) Fit the insulator into the front of the body using an SMA Insertion Tool.
