Part Number: MA10-0400-C06
MA10-0400-C06
Details & Specifications

DescriptionSMA Crimp Jack, Nickel Plated
To Fit Cable TypesRG142, RG223, RG400
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

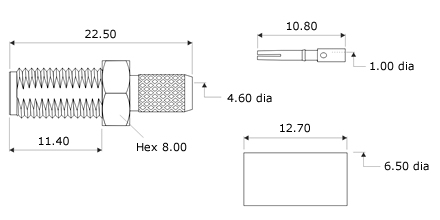

Technical Illustration
MA10-0400-C06
Assembly Instructions
Strip DimensionsA=8mm, B=2.5mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the contact onto the centre core and slide the contact into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is located in accordance with MIL-C-39012 interface dimensional requirements.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., Solder centre core
