Part Number: MA06-X001-N06
MA06-X001-N06
Details & Specifications

DescriptionSMA Flange Jack, Solder Receptacle
Fixing MethodPanel
BodyBrass, Nickel Plated
ContactPhosphor Bronze, Gold Plated
DielectricPTFE
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationA minimum order quantity may apply for this product as the prefered stock item is the gold plated alternative shown.

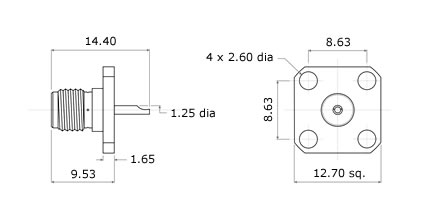

Technical Illustration
MA06-X001-N06
Panel Fixing Information
Cut-out DimensionsA=8.64mm, B=8.64mm, Holes: 4x2.60mm, 1x6.50mm
