Part Number: MA02-D316-C06-8

Details & Specifications

Description SMA Crimp Bulkhead Jack, Nickel Plated To Fit Cable Types RD316 Fixing Method Crimp Body Brass, Nickel Plated Contact Beryllium Copper, Gold Plated Dielectric PTFE Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated Washer SS41 Cable Retention Equal to breaking strain of cable Dielectric Withstanding 750 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 12.4 GHz Temperature Range -65 to +165 degrees C Working Voltage 335 Volts RMS Maximum Additional Information Recommended maximum panel thickness = 3.2mm. See alternative products for different plating options and other hexagonal flange sizes.

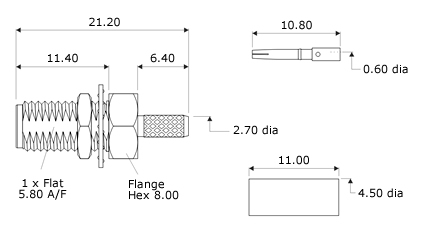

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=6.10mm, B=6.50mm

Assembly Instructions

Strip Dimensions A=7mm, B=2.5mm, C=2.5mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Solder the contact onto the centre core and slide the contact into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is located in accordance with MIL-C-39012 interface dimensional requirements. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 3.83mm Hex., Solder centre core
