Part Number: MA02-3162-C01WP
MA02-3162-C01WP
Details & Specifications

DescriptionSMA Waterproof Crimp Bulkhead Jack, IP68
To Fit Cable TypesRD316
Fixing MethodCrimp
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
LocknutBrass, Gold Plated
O RingNitrile Rubber (NBR)
PinBrass, Gold Plated
WasherBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-55 to +125 degrees C
Working Voltage335 Volts RMS Maximum
Maximum Panel Thickness2.50 mm
Additional InformationIP68 (ingress protection) rating: continuous submersion in water (in an unmated condition) to a minimum depth of 3 metres.

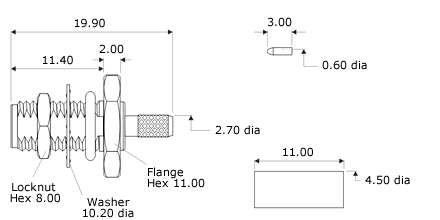

Technical Illustration
MA02-3162-C01WP
Panel Fixing Information
Cut-out DimensionsA=6.10mm, B=6.50mm
Assembly Instructions
Strip DimensionsA=6.0mm, B=3.0mm, C=2.0mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is fully located.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.83mm Hex., 0.72mm Square
