Part Number: MA02-0402-R01-8
MA02-0402-R01-8
Details & Specifications

DescriptionSMA Direct Solder Bulkhead Jack
To Fit Cable Types141 Semi-rigid, RG402 Conformable, RG402 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
LocknutBrass, Gold Plated
WasherSS41, Gold Plated - 10.2mm dia
Cable Retention27N
Dielectric Withstanding1000 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency18 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Maximum Panel Thickness3.2mm

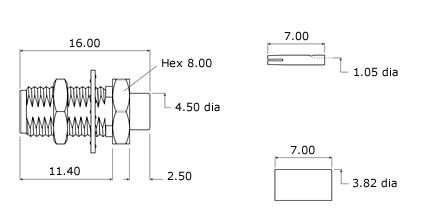

Technical Illustration
MA02-0402-R01-8
Panel Fixing Information
Cut-out DimensionsA=6.10mm, B=6.50mm

Assembly Instructions
Strip DimensionsA=0mm, B=2.5mm


1) Strip the cable to the dimensions as shown, taking care not to nick the centre core.
2) Solder the contact onto the centre core, then screw the body fully into an SMA Jack Gauge. Slide the contact into the back of the body until it meets the gauge and solder the cable to the mandril.
3) Fit the insulator into the front of the body using an SMA Insertion Tool.
