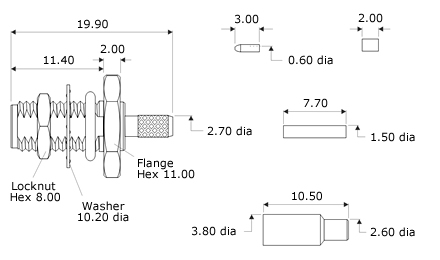

| Strip Dimensions | A=8.5mm, B=1.0mm, C=3.0mm |
| 1)
Slide the ferrule onto the cable and strip the cable to the dimensions
as shown, taking care not to nick the centre conductor or braid. |
| 2)
Slide the tube onto the cable and under the braid, then slide the
insulator onto the cable. Solder the pin onto the centre conductor and
slide the pin into the body, ensuring that the cable braid is on the
outside of the connector mandril and that the pin is fully located. |
| 3) Slide the ferrule forward and crimp. |
| Crimp Hex. Sizes | 3.25mm Hex., Solder centre core |
