Part Number: MA02-0174-C06
MA02-0174-C06
Details & Specifications

DescriptionSMA Crimp Bulkhead Jack, Nickel Plated
To Fit Cable TypesLBC100, LBC100 LSZH, LMR100, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingRubber
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency12.4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maximum
Maximum Panel Thickness2.50 mm
Additional InformationSee alternative products for different plating options and other hexagonal flange sizes.

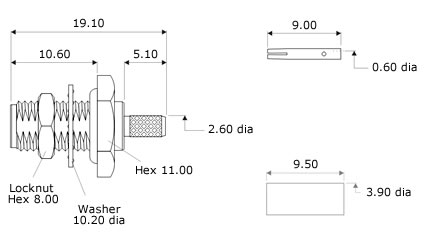

Technical Illustration
MA02-0174-C06
Panel Fixing Information
Cut-out DimensionsA=6.10mm, B=6.50mm

Assembly Instructions
Strip DimensionsA=7mm, B=2.5mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Solder the contact onto the centre core and slide the contact into the body, ensuring that the cable braid is on the outside of the connector mandril and that the contact is located in accordance with MIL-C-39012 interface dimensional requirements.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.25mm Hex., Solder centre core
