Part Number: MA02-0113-C01WP
MA02-0113-C01WP
Details & Specifications

DescriptionSMA Waterproof Crimp Bulkhead Jack, IP68
To Fit Cable TypesUMM-113_UFL
Fixing MethodCrimp
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
LocknutBrass, Gold Plated
O RingNitrile Rubber (NBR)
PinBrass, Gold Plated
WasherBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency3 GHz
Temperature Range-55 to +125 degrees C
Working Voltage335 Volts RMS Maximum
Maximum Panel Thickness2.50 mm
Additional InformationAvailable pre-terminated on UMM (UFL) cable assemblies only.

IP68 (ingress protection) rating: continuous submersion in water (in an unmated condition) to a minimum depth of 3 metres.

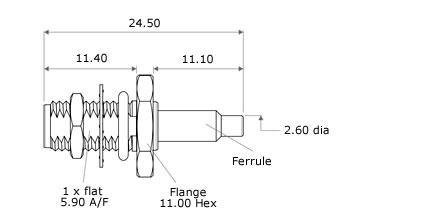

Technical Illustration
MA02-0113-C01WP
Panel Fixing Information
Cut-out DimensionsA=6.10mm, B=6.50mm
