Part Number: FT15-NT15-6-P75Z
FT15-NT15-6-P75Z
Details & Specifications

BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding500 Volts RMS Maximum
Durability50 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage250 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

1000MHz - 37.00dB [1.030]
2000MHz - 23.50dB [1.14]
3000MHz - 17.50dB [1.31]
4000MHz - 17.50dB [1.31]

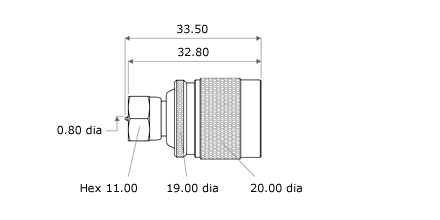

Technical Illustration
FT15-NT15-6-P75Z
