Part Number: FT10-NT15-6-P75Z
FT10-NT15-6-P75Z
Details & Specifications

BodyBrass, Nickel Plated
ContactBeryllium Copper, Gold Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding500 Volts RMS Maximum
Durability50 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage250 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

1000MHz - 38.00dB [1.027]
2000MHz - 23.50dB [1.14]
3000MHz - 17.50dB [1.31]
4000MHz - 17.50dB [1.31]

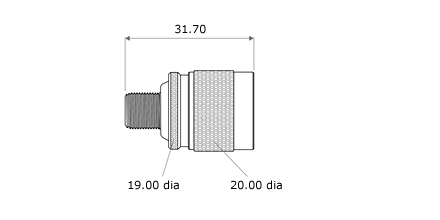

Technical Illustration
FT10-NT15-6-P75Z
