Part Number: FM10-0058-C06
FM10-0058-C06
Details & Specifications

DescriptionFME Crimp Jack
To Fit Cable TypesRG58, LBC195, LBC195 ExtraFlex, URM43
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
Coupling NutBrass, Nickel Plated
DielectricDelrin
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency2 GHz
Temperature Range-55 to +85 degrees C
Working Voltage250 Volts RMS Maximum

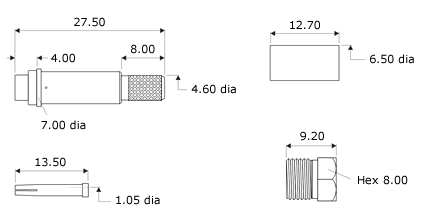

Technical Illustration
FM10-0058-C06
Assembly Instructions
Strip DimensionsA=8mm, B=4.5mm, C=3.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Slide the coupling nut onto the rear of the connector body. Then crimp the contact onto the centre core and slide the cable into the body until the contact is fully located. Ensure that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
