Part Number: FM07-0174-C06

Details & Specifications

Description FME Crimp Bulkhead Plug To Fit Cable Types LBC100, LBC100 LSZH, RG174, RG188, RG316 Fixing Method Crimp Body Brass, Nickel Plated Dielectric Delrin Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated Pin Brass, Gold Plated Washer SS41, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 2 GHz Temperature Range -55 to +85 degrees C Working Voltage 250 Volts RMS Maximum

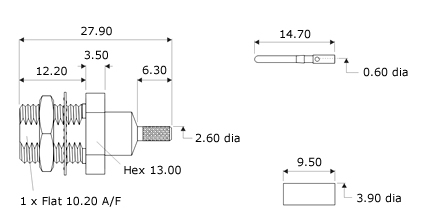

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=10.50mm, B=11.50mm

Assembly Instructions

Strip Dimensions A=8mm, B=5mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is fully located. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 3.25mm Hex., 1.20mm Sq.
