Part Number: BN62-X001-N06-1

Details & Specifications

Description BNC Panel Jack, Solder Receptacle Fixing Method Panel Body Brass, Nickel Plated Contact Phosphor Bronze, Gold Plated Dielectric Delrin Locknut Brass, Nickel Plated Solder Tag Brass, Nickel Plated Washer SS41, Nickel Plated Durability 500 mating cycles Impedance 75 ohms Max. Frequency 1 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum Additional Information See alternative part for PTFE dielectric version

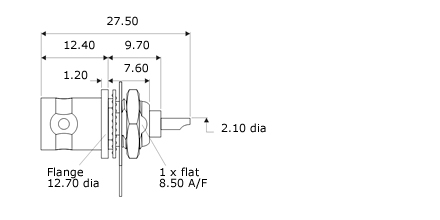

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=8.90mm, B=9.65mm
