Part Number: BN62-3162-C06
BN62-3162-C06
Details & Specifications

DescriptionBNC Crimp Panel Mount Jack - Front Entry
To Fit Cable TypesRD316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
O RingRubber
PinBrass, Gold Plated
WasherBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Maximum Panel Thickness6.9mm

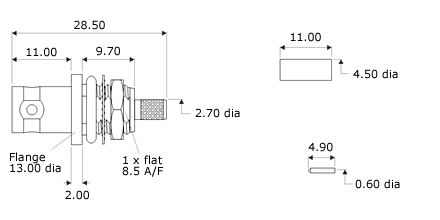

Technical Illustration
BN62-3162-C06
Panel Fixing Information
Cut-out DimensionsA=8.90mm, B=9.65mm
Assembly Instructions
Strip DimensionsA=7.5mm, B=2.5mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre pin is fully located within the integral contact.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.83mm Hex., 0.72mm Square
