Part Number: BN62-0174-C06

Details & Specifications

Description BNC Crimp Panel Mount Jack - Front Entry To Fit Cable Types LBC100, LBC100 LSZH, RG174, RG188, RG316 Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated Washer SS41, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

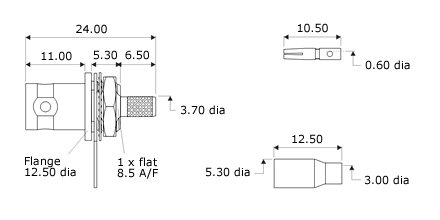

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=8.90mm, B=9.65mm

Assembly Instructions

Strip Dimensions A=8mm, B=3mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 4.52mm Hex., 1.69mm Hex.
