Part Number: BN17-0059-C06

Details & Specifications

Description BNC Crimp Right Angle Plug To Fit Cable Types RG59, URM70 Fixing Method Crimp Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric PTFE Ferrule Brass, Nickel Plated Pin Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 1 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

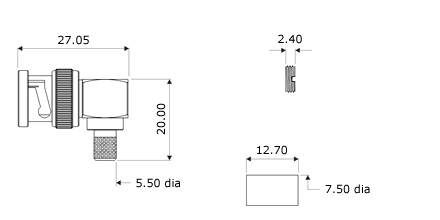

Technical Illustration

Assembly Instructions

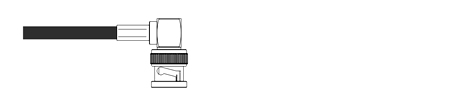

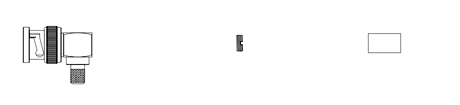

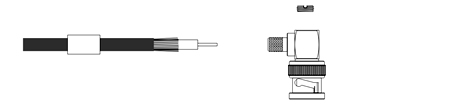

Strip Dimensions A=8mm, B=8mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Insert the cable into the body, ensuring that the cable braid is on the outside of the connector mandril and that the centre core locates in the internal mounting post. 3) Slide the ferrule forward and crimp. Solder the centre core of the cable to the mounting post and screw in the end cap. Crimp Hex. Sizes 6.48mm Hex., Solder centre core
