Part Number: BN15-NT15-6-P75Z
BN15-NT15-6-P75Z
Details & Specifications

BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

500MHz - 34.00dB [1.042]
1000MHz - 33.00dB [1.048]
2000MHz - 33.50dB [1.045]
3000MHz - 17.50dB [1.31]

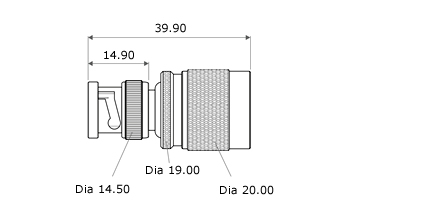

Technical Illustration
BN15-NT15-6-P75Z
