Part Number: BN15-75-A23-Z
BN15-75-A23-Z
Details & Specifications

DescriptionBNC HDTV Terminator
Fixing MethodNot Applicable
BodyBrass, Nickel Plated
Coupling NutBrass, Black Chrome Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding1500 Volts RMS Maximum
Impedance75 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum, 1/2 Watt
VSWR / Return Loss1.05 Maximum at 3GHz
Additional InformationSuitable for HDTV and other high frequency 75 ohm applications.

Return Loss [VSWR]

500MHz - 45.0dB [1.011]
1000MHz - 42.0dB [1.015]
2000MHz - 32.0dB [1.05]
3000MHz - 32.0dB [1.05]

For Nickel plated coupling nut version see alternative below

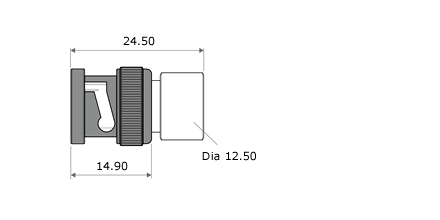

Technical Illustration
BN15-75-A23-Z
