Part Number: BN15-75-A06-Z
BN15-75-A06-Z
Details & Specifications

DescriptionBNC HDTV Terminator
Fixing MethodNot Applicable
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Dielectric Withstanding1500 Volts RMS Maximum
Impedance75 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum, 1/2 Watt
VSWR / Return Loss1.05 Maximum at 3GHz
Additional InformationSuitable for HDTV and other high frequency 75 ohm applications.

Return Loss [VSWR]

500MHz - 45.0dB [1.011]
1000MHz - 42.0dB [1.015]
2000MHz - 32.0dB [1.05]
3000MHz - 32.0dB [1.05]

For Black Chrome plated coupling nut version see alternative below

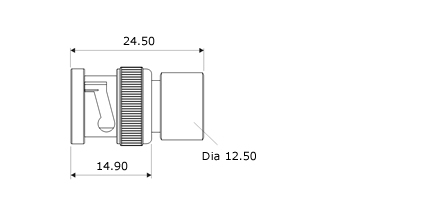

Technical Illustration
BN15-75-A06-Z
