Part Number: BN15-50-A06-1

Details & Specifications

Description BNC Terminator with Chain Fixing Method Not Applicable Body Brass, Nickel Plated Coupling Nut Brass, Nickel Plated Dielectric Delrin Pin Brass, Gold Plated Dielectric Withstanding 1500 Volts RMS Maximum Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum

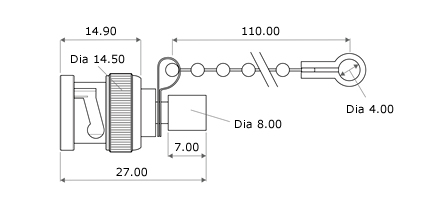

Technical Illustration
