Part Number: BN15-1694-C06

Details & Specifications

Description BNC Crimp Plug To Fit Cable Types Belden 1695A, Belden1694A Fixing Method Crimp Body Brass, Nickel Plated Coupling Nut Diecast, Nickel Plated Dielectric Delrin Ferrule Brass, Nickel Plated Pin Brass, Gold Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 1 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum Additional Information See Alternative for HDTV Precision BNC. Suitable for frequencies up to 3GHz.

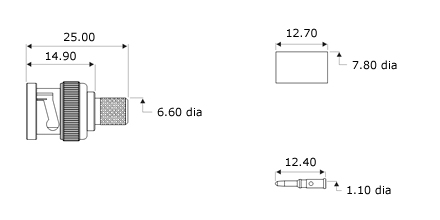

Technical Illustration

Assembly Instructions

Strip Dimensions A=8mm, B=5mm, C=4mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 6.81mm or 6.65mm Hex., 1.69mm Hex.
