Part Number: BN15-0405-R06
BN15-0405-R06
Details & Specifications

DescriptionBNC Direct Solder Plug
To Fit Cable Types085 Semi-rigid, RG405 Conformable, RG405 Conformable FEP
Fixing MethodSolder
BodyBrass, Gold Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum

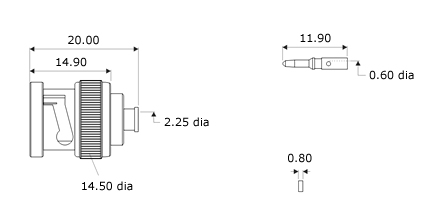

Technical Illustration
BN15-0405-R06
Assembly Instructions
Strip DimensionsA=0.0mm, B=4.3mm


1) Strip the cable as shown ensuring the Dielectric is flush with the cable Jacket leaving 4.3mm exposed centre conductor.
2) Slide the insulator onto the centre conductor and then solder the pin onto centre conductor.
3) Insert the cable and pin fully into the body until the pin captivates, then solder the outer shield of the cable to the connector mandril.
