Part Number: BN15-0013-C06
BN15-0013-C06
Details & Specifications

DescriptionBNC Crimp Plug
To Fit Cable TypesPSF1/3
Fixing MethodCrimp
BodyBrass, Nickel Plated
Coupling NutDiecast, Nickel Plated
DielectricDelrin
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency1 GHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum

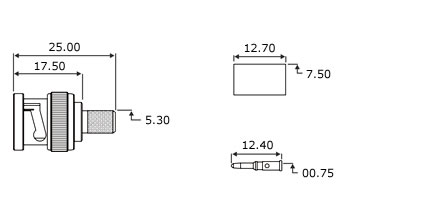

Technical Illustration
BN15-0013-C06
Assembly Instructions
Strip DimensionsA=8mm, B=5mm, C=4mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes6.48mm Hex., 1.69mm Hex.
