Part Number: BN10-NT10-1-P75Z
BN10-NT10-1-P75Z
Details & Specifications

BodyBrass, Gold Plated
ContactPhosphor Bronze/Beryllium Copper, Gold Plated
DielectricPTFE
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationPlease note: 75 ohm N types are not intermateable with standard 50 ohm N types.

Return Loss [VSWR]:

1000MHz - 49.94dB [1.002]
1500MHz - 44.26dB [1.012]
2000MHz - 41.79dB [1.018]
2500MHz - 40.50dB [1.021]
3000MHz - 38.59dB [1.024]

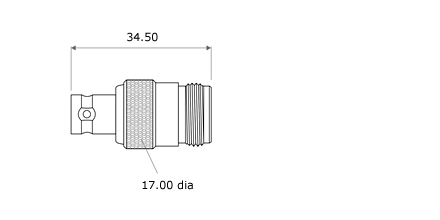

Technical Illustration
BN10-NT10-1-P75Z
