Part Number: BN10-MA15

Details & Specifications

Body Brass, Nickel Plated Contact Phosphor Bronze, Gold Plated Coupling Nut Brass, Nickel Plated Dielectric PTFE Pin Phosphor Bronze, Gold Plated Dielectric Withstanding 1000 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

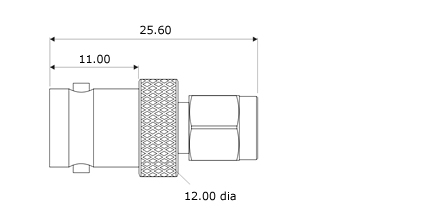

Technical Illustration
