Part Number: BN10-MA10
Details & Specifications
Body
Brass, Nickel Plated
Contact
Phosphor Bronze, Gold Plated
Dielectric
PTFE
Dielectric Withstanding
1000 Volts RMS Maximum
Durability
500 mating cycles
Impedance
50 ohms
Max. Frequency
4 GHz
Temperature Range
-65 to +165 degrees C
Working Voltage
500 Volts RMS Maximum

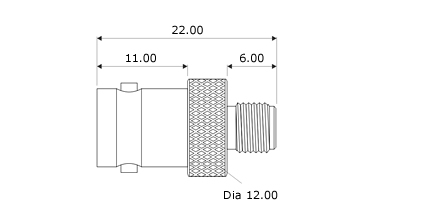

Technical Illustration
