Part Number: BN10-3002-C06
BN10-3002-C06
Details & Specifications

DescriptionBNC Crimp Jack
To Fit Cable Types1.5C-2V, BT3002, RD179
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricPTFE
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency1 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationUse alternative part BN10-3002-C06-2 if crimping contact with BT standard hex size 1.46mm

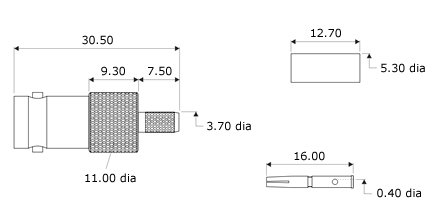

Technical Illustration
BN10-3002-C06
Assembly Instructions
Strip DimensionsA=8mm, B=3mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes4.52mm Hex., 1.69mm Hex.
