Part Number: BN10-0174-C06-1

Details & Specifications

Description BNC Crimp Jack To Fit Cable Types LBC100, LBC100 LSZH, LMR100, RG174, WBC100 Fixing Method Crimp Body Zinc, Nickel Plated Contact Brass, Gold Plated Dielectric Delrin Ferrule Brass, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 1 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum Additional Information Alternative part; 3 piece crimp part is BN10-0174-C06

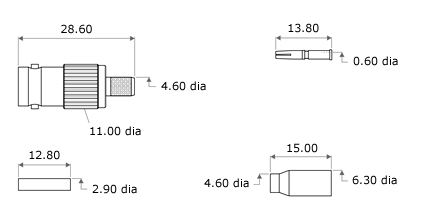

Technical Illustration

Assembly Instructions

Strip Dimensions A=12mm, B=3mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Open the cable braid and slide the insulator tube over the dielectric and under the braid. Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., 1.69mm Hex.
