Part Number: BN06-X001-N06

Details & Specifications

Description BNC Flange Jack, Solder Receptacle Fixing Method Panel Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric Delrin Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -55 to +85 degrees C Working Voltage 500 Volts RMS Maximum

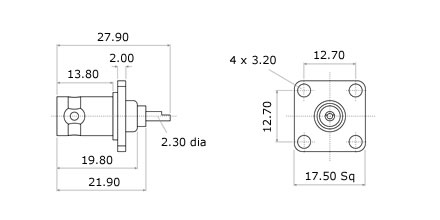

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.70mm, B=12.70mm, Holes: 4x3.20mm, 1x12.00mm
