Part Number: BN06-X001-N06-3

Details & Specifications

Description BNC Flange Jack, Solder Receptacle Fixing Method Panel Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 1 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum

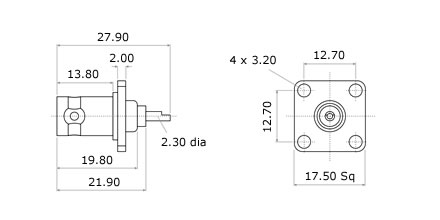

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.70mm, B=12.70mm, Holes: 4x3.20mm, 1x12.00mm
