Part Number: BN06-0174-C06-1
BN06-0174-C06-1
Details & Specifications

DescriptionBNC Crimp Flange Jack
To Fit Cable Types LBC100, LBC100 LSZH, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricDelrin
FerruleBrass, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Durability500 mating cycles
Impedance50 ohms
Max. Frequency600 MHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum

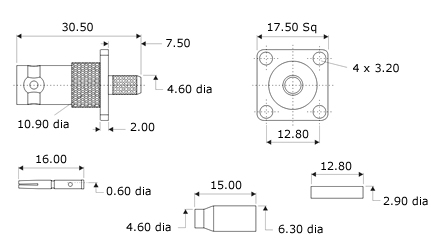

Technical Illustration
BN06-0174-C06-1
Panel Fixing Information
Cut-out DimensionsA=12.70mm, B=12.70mm, Holes: 4x3.20mm, 1x12.00mm

Assembly Instructions
Strip DimensionsA=12mm, B=3mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Open the cable braid and slide the insulator tube over the dielectric and under the braid. Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
