Part Number: BN02-3161-C06WP
BN02-3161-C06WP
Details & Specifications

DescriptionBNC Waterproof Crimp Bulkhead Jack, IP68
To Fit Cable TypesLBC100, LBC100 LSZH, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Nickel plated
ContactBrass, Gold plated
DielectricPTFE
FerruleBrass, Nickel plated
LocknutBrass, Nickel plated - 16mm A/F
O RingSilicon Rubber
PinBrass, Gold plated
WasherPhosphor Bronze, Nickel plated - 15.9mm dia.
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Maximum Panel Thickness6mm
Additional InformationIP68 (ingress protection) rating: continuous submersion in water (in an unmated condition) to a minimum depth of 3 metres.

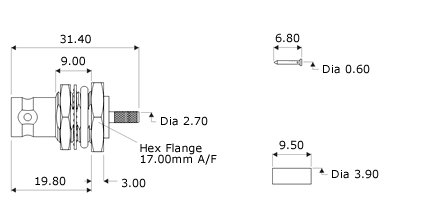

Technical Illustration
BN02-3161-C06WP
Panel Fixing Information
Cut-out DimensionsA=12.00mm, B=12.90mm

Assembly Instructions
Strip DimensionsA=7.5mm, B=5.0mm, C=2.5mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body, ensuring that the cable braid is on the outside of the connector mandril and that the pin is fully located.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes3.25mm Hex., 0.72mm Square
