Part Number: BN02-0400-C06-4

Details & Specifications

Description BNC Crimp Bulkhead Jack, Hex. Flange To Fit Cable Types RG142, RG223, RG400 Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric PTFE Ferrule Brass, Nickel Plated Locknut Brass, Nickel Plated Washer SS41, Nickel Plated Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500 Volts RMS Maximum Durability 500 mating cycles Impedance 50 ohms Max. Frequency 4 GHz Temperature Range -65 to +165 degrees C Working Voltage 500 Volts RMS Maximum Additional Information See alternative for Delrin dielectric version.

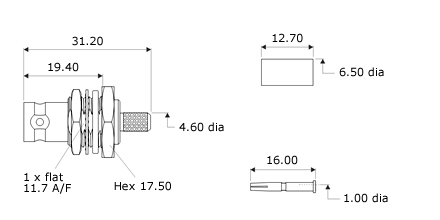

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.00mm, B=12.90mm

Assembly Instructions

Strip Dimensions A=8mm, B=6mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril. 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., 1.69mm Hex.
