Part Number: BN02-0179-C06-7

Details & Specifications

Description BNC Crimp Bulkhead Jack, Hex. Flange To Fit Cable Types Belden 1522A, RG179, RG179PE Fixing Method Crimp Body Brass, Nickel Plated Contact Brass, Gold Plated Dielectric Delrin Ferrule Brass, Nickel Plated Insulator Delrin Cable Retention Equal to breaking strain of cable Dielectric Withstanding 1500V RMS Maximum Durability 500 mating cycles Impedance 75 ohms Max. Frequency 1 GHz Working Voltage 500V RMS Maximum Additional Information See alternatives; BN02-0179-C06-1 is 4 piece crimp assembly with 15mm circular flange. BN02-0179-C06 is 3 piece crimp assembly with hexagonal flange.

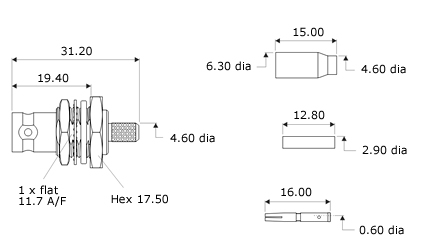

Technical Illustration

Panel Fixing Information

Cut-out Dimensions A=12.00mm, B=12.90mm

Assembly Instructions

Strip Dimensions A=12mm, B=3mm, C=3mm 1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid. 2) Open the cable braid and slide the insulator tube over the dielectric and under the braid. Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril 3) Slide the ferrule forward and crimp. Crimp Hex. Sizes 5.41mm Hex., 1.69mm Hex.
