Part Number: BN02-0174-C06-7
BN02-0174-C06-7
Details & Specifications

DescriptionBNC Crimp Bulkhead Jack, Hex. Flange
To Fit Cable TypesLBC100, LBC100 LSZH, RG174, RG188, RG316
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricDelrin
FerruleBrass, Nickel Plated
InsulatorDelrin
LocknutBrass, Nickel Plated
TubeDelrin
WasherSS41, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationSee alternatives;
BN02-0174-C06-1 is 4 piece crimp assembly with 15mm circular flange.
BN02-0174-C06 is 3 piece crimp assembly with hexagonal flange.

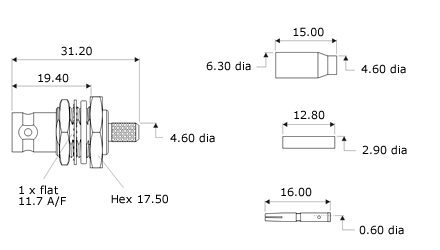

Technical Illustration
BN02-0174-C06-7
Panel Fixing Information
Cut-out DimensionsA=12.00mm, B=12.90mm
Assembly Instructions
Strip DimensionsA=12mm, B=3mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Open the cable braid and slide the insulator tube over the dielectric and under the braid. Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
