Part Number: BN02-0058-C06
BN02-0058-C06
Details & Specifications

DescriptionBNC Crimp Bulkhead Jack, Hex. Flange
To Fit Cable TypesRG58, LBC195, LBC195 ExtraFlex, URM43
Fixing MethodCrimp
BodyBrass, Nickel Plated
ContactBrass, Gold Plated
DielectricDelrin
FerruleBrass, Nickel Plated
LocknutBrass, Nickel Plated
WasherSS41, Nickel Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency4 GHz
Temperature Range-55 to +85 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationFor 15mm circular flange version see alternative part number BN02-0058-C06-2
For the version with a PTFE dielectric see alternative part number BN02-0058-C06-4

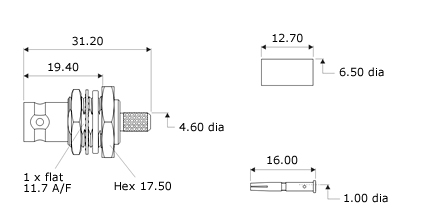

Technical Illustration
BN02-0058-C06
Panel Fixing Information
Cut-out DimensionsA=12.00mm, B=12.90mm
Assembly Instructions
Strip DimensionsA=8mm, B=6mm, C=3mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the contact onto the centre core and slide the contact into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes5.41mm Hex., 1.69mm Hex.
