Part Number: 2302-0179-C01
2302-0179-C01
Details & Specifications
Description1.0/2.3 Crimp Bulkhead Jack, Goldl Plated
To Fit Cable TypesRG179, RG179PE
Fixing MethodCrimp
BodyBrass, Nickel Plated
Contact
Beryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
Locknut
Brass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency4 GHz
Temperature Range-65 to +165 degrees C
Working Voltage2500V RMS

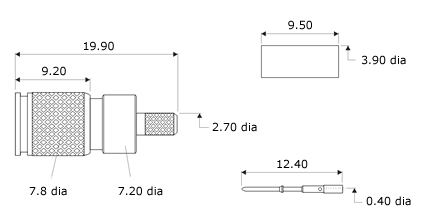

Technical Illustration
2315-0179-C06
Assembly Instructions

Strip Dimensions

A=5.0mm, B=2.0mm, C=3.0mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.

2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.

3) Slide the ferrule forward and crimp.
