Part Number: CX75-179-1
CX75-179-305
Details & Specifications

DescriptionRG179, RG FEP Cable
Inner ConductorSilver Plated Copper Clad Steel
DielectricPTFE (1.6mm)
Overall BraidSilver Plated Copper
JacketFEP (2.54mm)
Bending Radius (static)10mm
Weight15 gms/m
Impedance75 ohms
Max. Frequency3 GHz
Capacitance63.65 pF/m
Temperature Range-55 to +200 degrees
Velocity of Propagation70%
Working Voltage1200 Volts RMS
Attenuation
150 MHz32.7 dB / 100m
220 MHz39.8 dB / 100m
450 MHz57.4 dB / 100m
900 MHz82.3 dB / 100m
1500 MHz107.6 dB / 100m
1800 MHz118.4 dB / 100m
2000 MHz125.3 dB / 100m
2500 MHz141.1 dB / 100m
3000 MHz155.6 dB / 100m
Additional InformationDue to the manner in which PTFE cables are manufactured it is not necessarily possible to supply long cut lengths as one continuous length.

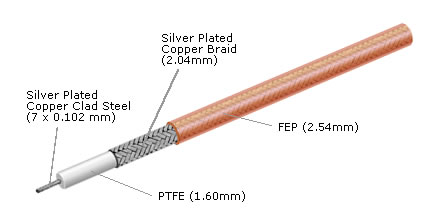

Technical Illustration
CX75-179-305
