Part Number: CX50-LBC600-1
CX50-LBC600-100
Details & Specifications

DescriptionLBC600, LBC Cable
Inner ConductorBare Copper Clad Aluminium (4.47mm)
DielectricPhysical Foam Polyethylene (11.56mm)
Outer ConductorBonded Aluminium Foil (11.71mm)
Overall BraidTinned Copper (12.50mm)
JacketBlack Polyethylene (14.99mm)
Bending Radius (static)37mm
Bending Radius (flexing)75mm
Weight220 gms/m
Impedance50 ohms
Max. Frequency6000 MHz
Capacitance76.8 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation87%
Voltage Withstanding4000 Volts DC
Attenuation and Average Powerper 100m / KW
150 MHz3.20dB / 2.41
220 MHz3.90dB / 1.97
450 MHz5.60dB / 1.35
900 MHz8.20dB / 0.93
1500 MHz10.90dB / 0.70
1800 MHz12.10dB / 0.63
2000 MHz12.80dB / 0.59
2500 MHz14.50dB / 0.52
3000 MHz15.70dB / 0.41
5800 MHz23.80dB / 0.32
Additional InformationSee alternatives for LBC600 cable on 100 metre drums.

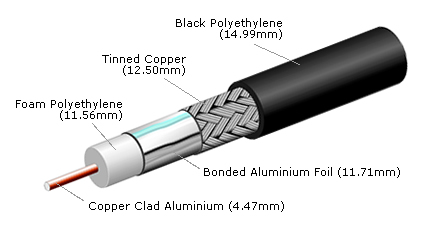

Technical Illustration
CX50-LBC600-100
